Explosion-Proof Weather Stations Installed at Inner Mongolia Coal Chemical Plant

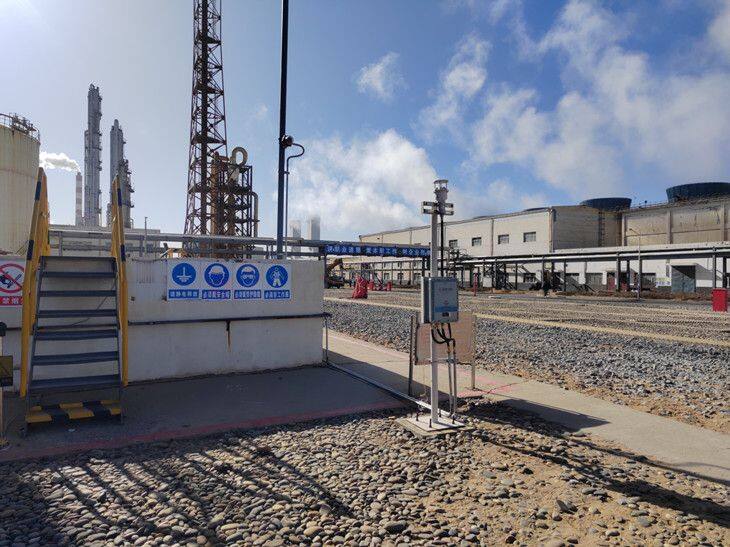

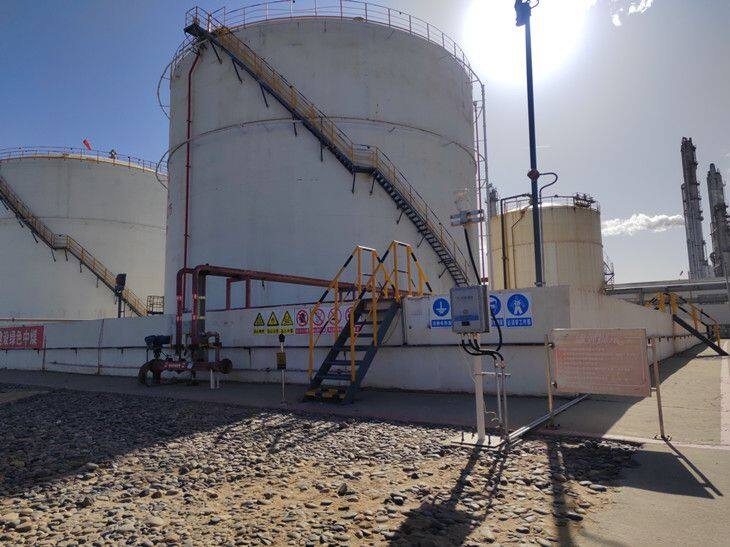

Recently, our engineering team completed the installation of two explosion-proof weather stations at Zhongmei Yuanxing Energy Chemical Co., Ltd. in the Wushenqi industrial park, Ordos, Inner Mongolia, China. The systems were deployed in the methanol plant area to provide reliable meteorological monitoring under hazardous and explosive risk conditions.
In special environments such as petrochemical plants and oil and gas storage and transportation sites, strict explosion-protection requirements make conventional weather stations unsuitable. The deployed explosion-proof weather stations are specifically designed for hazardous zones and feature comprehensive protection capabilities including explosion resistance, corrosion resistance, dustproofing, and waterproofing, ensuring stable long-term operation in harsh industrial environments.

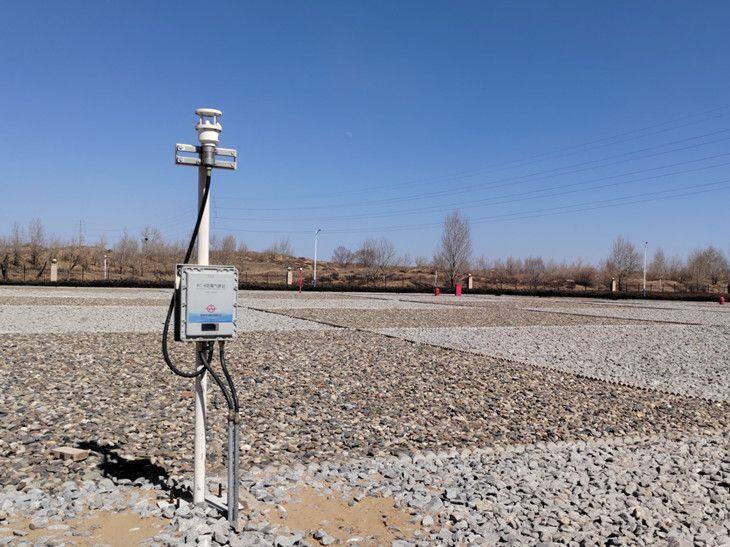

Each station is built with intrinsically safe explosion-proof sensor probes, isolated power and wiring units, explosion-proof flexible conduits, and stainless-steel mounting structures. The configuration fully complies with national explosion-protection standards. Monitoring parameters can be customized according to user requirements, and real-time data can be displayed both on the platform and on-site LED screens, with display size and format available for customization.
The system supports multiple power supply options including DC12V, DC24V, and AC220V. Signal outputs include RS485 or 4–20 mA, and communication uses the Modbus RTU protocol with an open interface for secondary development and system integration. The project provides strong safety and environmental data support for chemical plant operations and risk management.
Recently Posted
-
Solar Radiation Spectral Monitoring System Deployed at Alxa Environmental Monitoring Station
February 2, 2026Recently, Sunweather Meteorological TechnologyCo., Ltd (SunWeather) successfully deployed a solar radiation spectral monitori
Read More -
Standard Agricultural Meteorological Observation Station at Northeast Agricultural University
February 2, 2026Recently, Jinzhou Sunshine Meteorological Technology Co., Ltd. (SunWeather) completed the installation of a standard agricultural
Read More -
Automated PV Meteorological Station Commissioned at Atasi Honghong Photovoltaic Power Plant
February 1, 2026Sunweather has successfully deployed an automated photovoltaic meteorological station at the Atasi Honghong Photovoltaic Power Pla
Read More -
First Field Deployment of the Year: Huangping Village Photovoltaic Power Station in Jingmen
February 1, 2026Sunweather recently completed the installation and commissioning of a photovoltaic power plant environmental monitoring system at
Read More
Contact Us
Recommended Products
-
L3 Tipping Bucket Rain GaugeNegotiableMOQ: 1 Unit -
TDR-4 Soil Electrical Conductivity SensorNegotiableMOQ: 1 Unit
-
TDR-3A Soil Moisture and Temperature SensorNegotiableMOQ: 1 Unit
-
EC-9XA Wind Direction Sensor, Wind Vane SensorNegotiableMOQ: 1 Unit
-

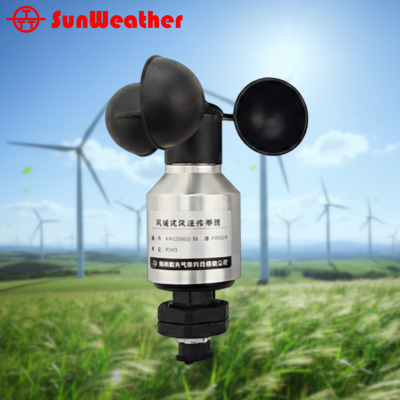

EC-9SA Wind Speed SensorNegotiableMOQ: 1 Unit
-
EC-8SX Integrated Wind Speed & Direction SensorNegotiableMOQ: 1 Set
-
TBB-2 Four-Component Net Radiometer / Net Total Radiation SensorNegotiableMOQ: 1 Unit
-
TBB-1 Net Radiation SensorNegotiableMOQ: 1 Unit
-
TBL-1 Longwave Radiation SensorNegotiableMOQ: 1 Unit
-
TBS-2-2 Direct Radiation SensorNegotiableMOQ: 1 Unit
-
TBD-1 Diffuse Radiation SensorNegotiableMOQ: 1 Unit
-
PC-2-T Solar Radiation Standard Observation StationNegotiableMOQ: 1 Set
-
PC-2WS Multi-Channel Temperature & Humidity Monitoring SystemNegotiableMOQ: 1 Set
-
QA-1 Barometric Pressure SensorNegotiableMOQ: 1 Unit
-
PTS-3 Environmental Temperature & Humidity SensorNegotiableMOQ: 1 Unit
-
PC-A6 3D Ultrasonic Weather StationNegotiableMOQ: 1 Set
-
PC-8G Portable Weather Station With Touch DisplayNegotiableMOQ: 1 Set
-
PC-8K Six-Parameter Meteorological Monitoring InstrumentNegotiableMOQ: 1 Unit
-

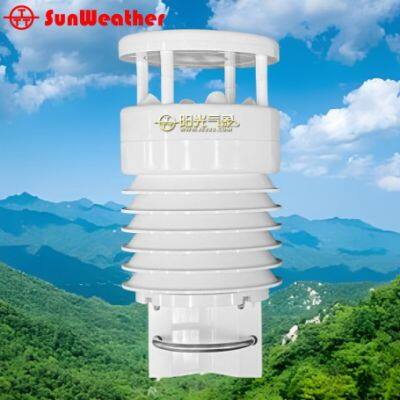

PC-8D Five-Parameter Meteorological Monitoring InstrumentNegotiableMOQ: 1 Unit
-
